36V, 10A Step-Down Switching Regulator

1、Features

4.5V to 36V wide operating input range
10A continuous output current capability
Dynamical programming of output current and Output voltage using PWM signal or analog signal
Adjustable Switching Frequency using resistor
Frequency dithering for good EMI performance
Integrated 2-A MOSFET Gate Drivers
Comprehensive protection features including Output Short Protection (OSP), Cycle-by-Cycle input and output Peak Current Limit, thermal regulation, thermal shutdown, input UVLO, input OVP, output OVP etc.
Output Average Current Limiting with stable CC loop
5V/55mA low Iq LDO to power system MCU
QFN4x4-20 Package

2、Applications

Automotive Start-Stop Systems
Industrial PC Power Supplies
USB Power Delivery

3、Description

PL56001 is a PWM controller, designed for high performance synchronous Buck DC/DC applications with input voltages 4.5 V to 32 V (36 V maximum). PL56001 employs Constant ON time control. The switching frequency could be set to 150kHz, 300kHz,600kHz or 1200kHz based on different resistor value between FREQ pin and GND pin. The device also features a programmable soft-start function and offers all kinds of protection features including cycle-by-cycle current limiting, input under voltage lockout (UVLO), output over voltage protection (OVP), input Over Voltage Protection, thermal shutdown and output short protection etc. PL56001 provides voltage control loop, constant current loop, and thermal regulation loop.

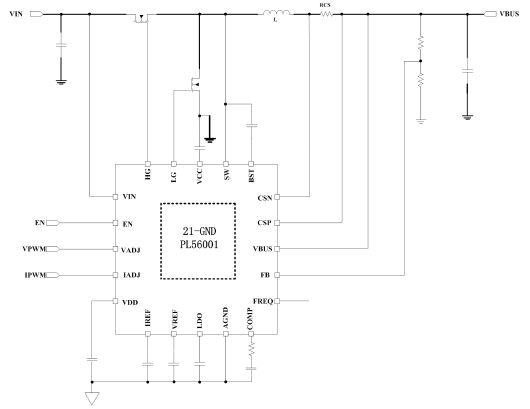

4、Typical Application Schematic

5、Pin Configuration and Functions
