LM324H 1MHZ High Voltage Bipolar Opamp

1、Features

Single-Supply Operation from +3V ~ +36V
Dual-Supply Operation from ±1.5V ~ ±18V
Gain-Bandwidth Product: 1MHz (Typ)
Low Input Bias Current: 20nA (Typ)
Low Offset Voltage: 5mV (Max)
Quiescent Current: 250μA per Amplifier (Typ)
Input Common Mode Voltage Range Includes Ground
Large Outpu Voltage Swing:0V to Vcc-1.5V
Operating Temperature: -25°C ~ +85°C
Small Package:LM324H Available in SOP-14 Package

3、Applications

Walkie-Talkie
Battery Management Solution
Transducer Amplifiers
Summing Amplifiers
Multivibrators
Oscillators
Switcching Telephone
Portable Systems

2、General Description

The LM324H have a high gain-bandwidth product of 1MHz, a slew rate of 0.2V/μs, and a quiescent currentof 250μA/amplifier at 5V.

The LM324H is designed to provide optimal performance in low voltage and low noise systems. The maximum input offset voltage is 5mV for LM324H. The operating range is from 3V to 36V. The LM324H Quad is available in Green SOP-14 package.

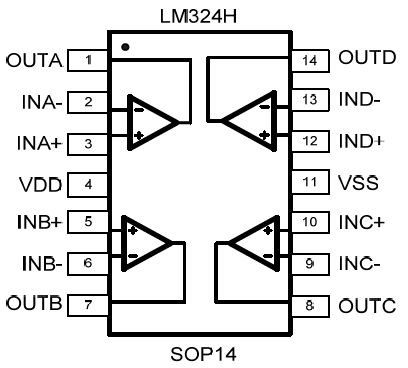

4、Pin Configuration

产品型号

供货状态

通道数

工作电压范围

(V)

增益带宽积

静态电流/通道

失调电压

（mV）

失调电压温漂

（μV/°C）

输入偏置电流

（nA）

封装

LM324H

量产

3.0-36

1MHz

250uA

SOT14

产品中心

LM324H 运算放大器

产品详情

LM324H 1MHZ High Voltage Bipolar Opamp
