LM321H 1MHZ High Voltage Bipolar Opamp

1、Features

Single-Supply Operation from +3V ~ +36V
Dual-Supply Operation from ±1.5V ~ ±18V
Gain-Bandwidth Product: 1MHz (Typ)
Low Input Bias Current: 20nA (Typ)
Low Offset Voltage: 5mV (Max)
Quiescent Current: 250μA per Amplifier (Typ)
Input Common Mode Voltage Range Includes Ground
Large Outpu Voltage Swing:0V to Vcc-1.5V
Operating Temperature: -25°C ~ +85°C

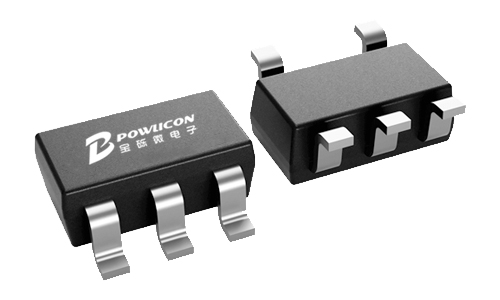

Small Package:LM321H Available in SOT23-5 Package

3、Applications

Walkie-Talkie
Battery Management Solution
Transducer Amplifiers
Summing Amplifiers
Multivibrators
Oscillators
Switcching Telephone
Portable Systems

2、General Description

The LM321H have a high gain-bandwidth product of 1MHz, a slew rate of 0.2V/μs, and a quiescent currentof 250μA/amplifier at 5V.

The LM321H is designed to provide optimal performance in low voltage and low noise systems. The maximum input offset voltage is 5mV for LM321H. The operating range is from 3V to 36V. The LM321H single is available in Green SOT-23-5 package.

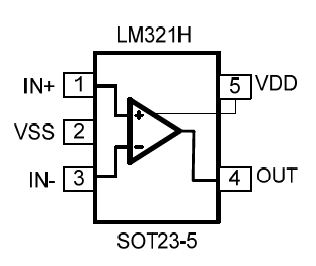

4、Pin Configuration

产品型号

供货状态

通道数

工作电压范围

(V)

增益带宽积

静态电流/通道

失调电压

（mV）

失调电压温漂

（μV/°C）

输入偏置电流

（nA）

封装

LM321H

量产

3.0-36

1MHz

250uA

SOT23-5
