| 产品型号 | 输入电压 范围(V) | 最大输出 电流(A) | 频率 | 待机电流 (uA) | 软启动 | 功率管 内/外置 | 同步/异步 | CC/CV | 补偿 | 控制结构 | 封装类型 | 包装 | 注释 |
| LYF98001 | 2.6-5.5 | 1.5 | 2000 | 55 | 内置 Internal | 内置 Internal | 同步 | CV | 内置 Internal | 峰值电流 | SOT23-6 | 3K/盘 | Pin兼容: SY8808/89 |
1.5A 2MHz 5.5V Synchronous Buck Converter
1、Features
2、Applications
| 3、Description The LYF98001 is a high-efficiency, DC-to-DC step-down switching regulators, capable of delivering up to 1.5A of output current. The device operates from an input voltage range of 2.6V to 5.5V and provides an output voltage from 0.6V to VIN. Working at a fixed frequency of 2MHz allows the use of small external components, such as ceramic input and output caps, as well as small inductors, while still providing low output ripples. This low noise output along with its excellent efficiency achieved by the internal synchronous rectifier, making LYF98001 an ideal replacement for large power consuming linear regulators. Internal soft-start control circuitry reduces inrush current. Short-circuit and thermal shutdown protection improves design reliability. The LYF98001 is available in SOT23-5. |

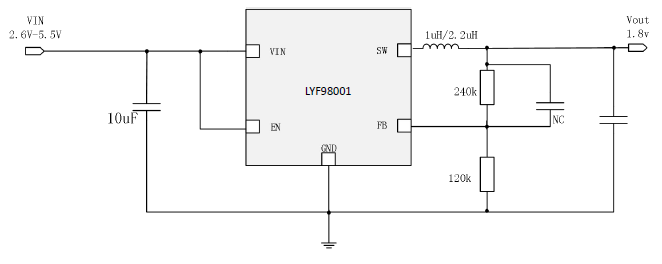

| 4、Typical Application Schematic | 5、Pin Configuration and Functions |
 |  |
